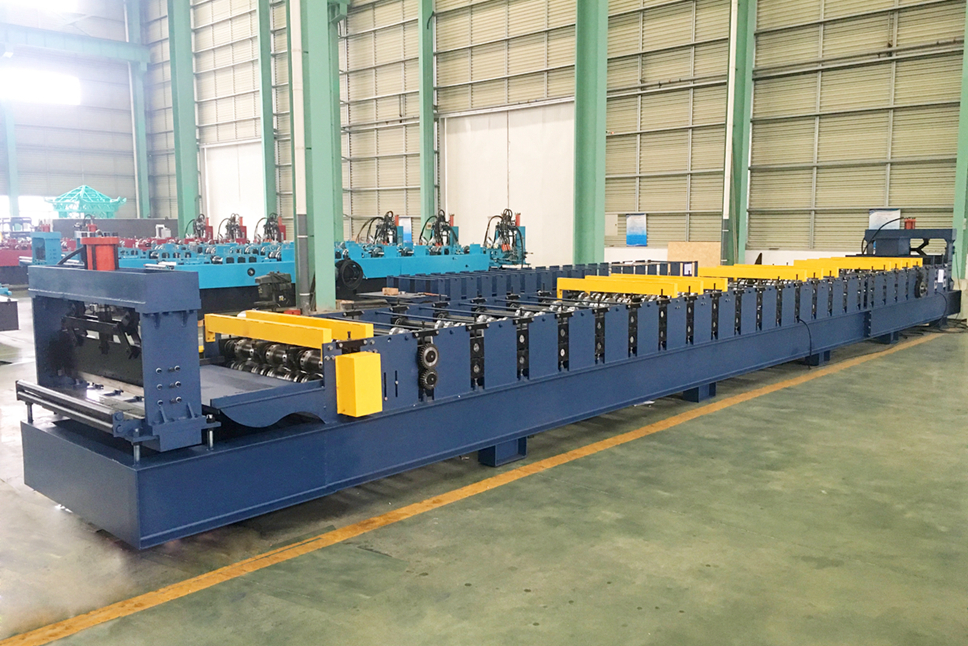

YX55-323-970 Metal Floor Decking Sheet Machine
Profiles:
|
PROFILE |
YX55-323-970 |
APPLICATION |
|
USEFUL WIDTH(mm) |
970±5 |
|
|
FEEDING WIDTH(mm) |
1250 |
ROOFING DECKING |
|
THICKNESS(mm) |
0.8-1.2 |
Decoiling – Feeding - Roll forming - Cutting - Stacking
|
Equipment series |
E Series |
|
Phase/voltage/frequency |
Customize |
|
Driven type |
Asynchronous motor + reducer + chain |
|
Productivity |
10-15m/min |
|
Length tolerance |
±2mm |
|
Roller material |
GCr15 bearing steel chromed |
|
Spindle material |
40Cr thermal refining |
|
Spindle diameter |
Approx 85mm |
|
Spindle side wall thickness |
Approx 16mm |
|
Installed pre-cutting |
Manual clipper cutter |
|
Installed post cutting |
Automatic hydraulic post cutting |
|
During production |
HMI PLC (TXT display) |
|
Manual decoiler |
Manually expansion |
|
Loading capacity |
Max. 5tons |
Main Components:
| Item |
Description |
Quantity |
|
1 |
Manual decoiler |
1Nos |
|
2 |
Feeding, guiding and pre-cutting unit |
1Nos |
|
3 |
Main roll forming machine |
1Nos |
|
4 |
Hydraulic post shearing unit |
1Nos |
|
5 |
Control cabinet |
1Nos |
|
6 |
Spare parts and tools |
1Nos |
